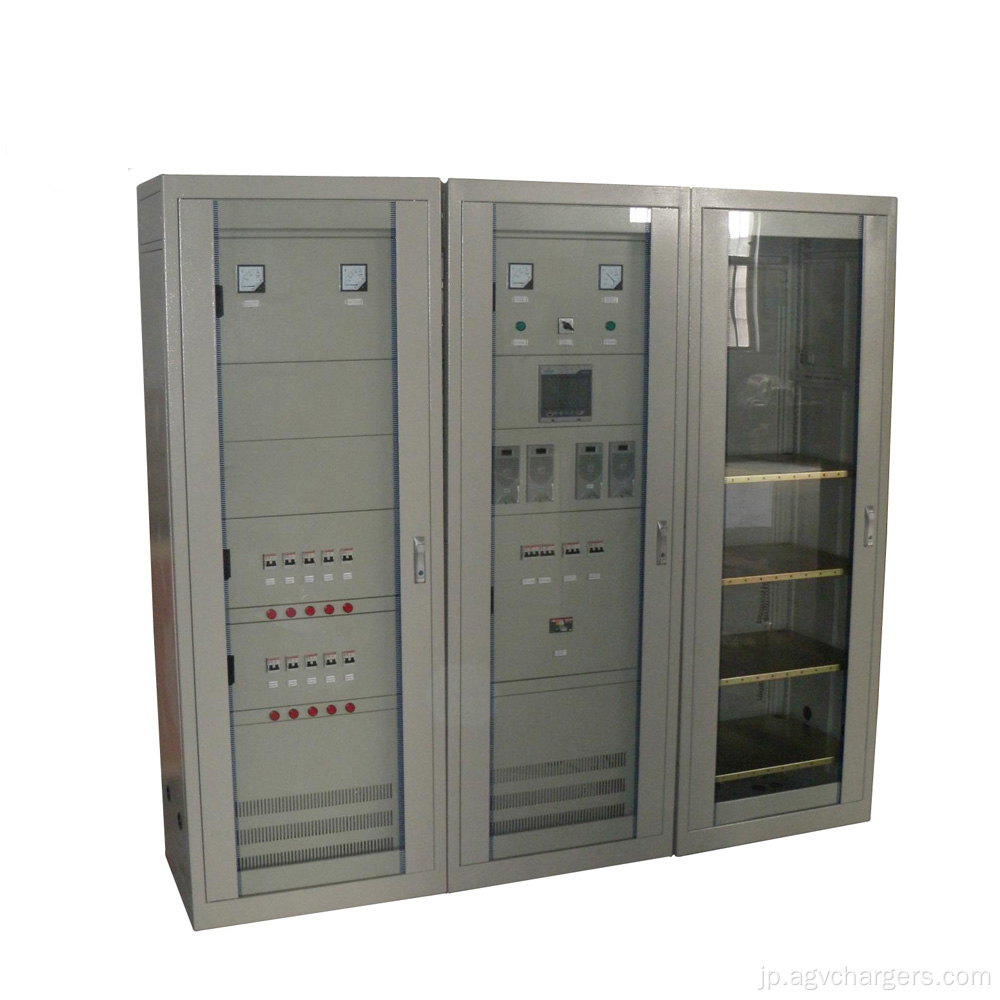

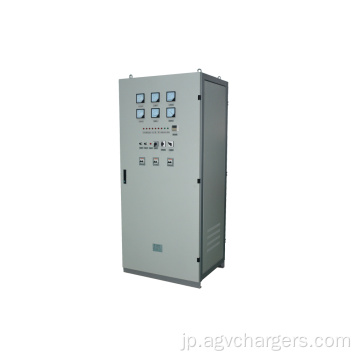

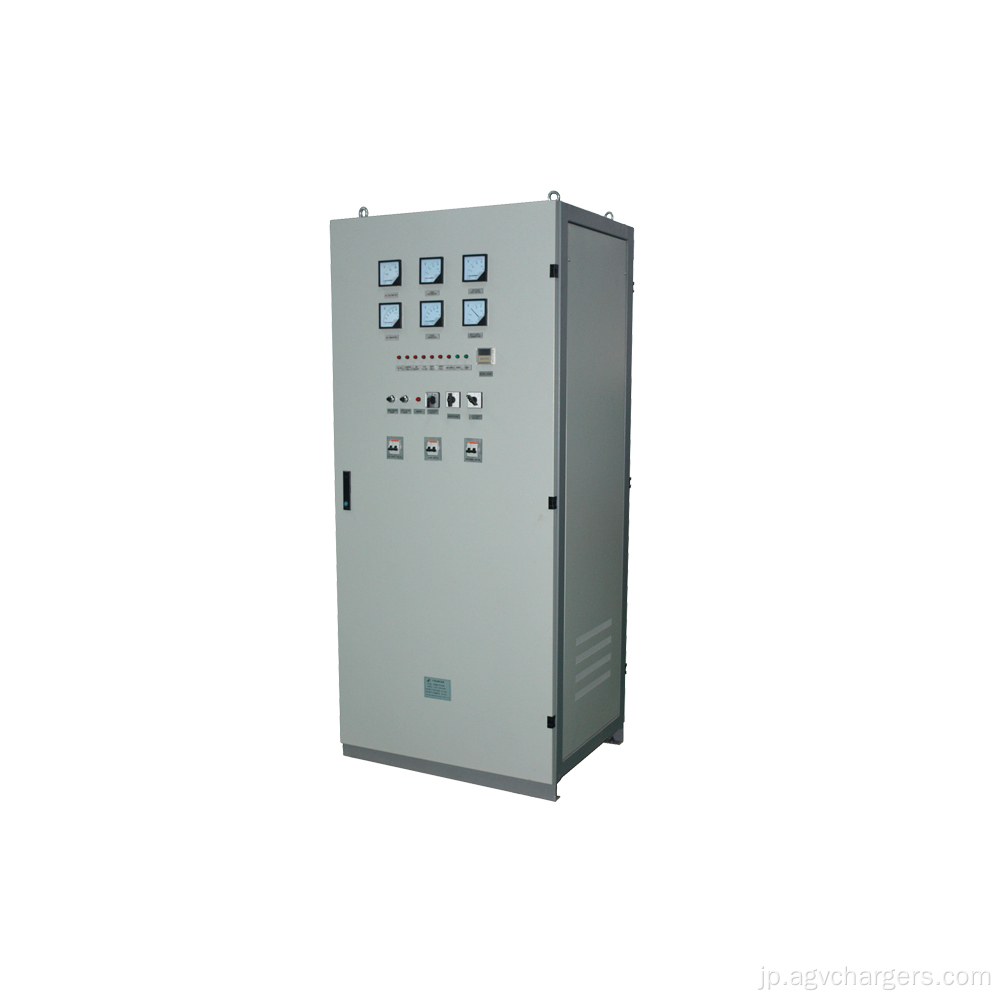

PZDKシリーズ高周波スイッチDC電源システム
これらの製品は、多くの独立した高周波スイッチ電源モジュールからなる、高い信頼性と高いインテリジェンスという利点を持っています。モジュールはホットプラグ可能で、システムのメンテナンスとオーバーホールをより簡単でより便利にします。
モデル説明
蓄電池の容量:
鉛蓄電池:10〜3000Ah。
ニッケルカドミウム蓄電池:10-1000Ah
公称電圧DC電圧:24V、48V、110V、220V。
パネルコンビネーションソリューション
主な特徴
技術パラメータ
注文情報
Sl. No. |
Description |
Offered |
1 |
Type of rectifier |
Thyristor (3 phase full controlled bridge) |
2 |
Rated Input voltage range |
AC 380V± 10% |
3 |
Rated Frequency |
50 Hz -60Hz |
4 |
No of Phase |
3 Phase |
5 |
Output voltage |
DC 0-300 V |
6 |
Output current |
DC 0-60 A |
7 |
Charging operating control |
Boost and floating charge,automatic with manual operation |
8 |
Standard |
As per Latest Edition of applicable IEC-60146 |
9 |
Continuous current rating |
110 % of rated current |
10 |
Efficiency |
80% at full load. |
11 |
Voltage regulation |
± 1% for 10% input voltage variations and 5-100% loadvariations. |
12 |
Ripple voltage |
Less than 3% rms (without Battery connected) |
13 |
Cooling system |
Forced |
14 |
Operating temperature |
0 to 50 ℃ |
15 |
Humidity |
95% |
16 |
Audible noise |
≤ 65dB |
