-I tは鉛蓄電池やニッケルカドミウム電池に適しています
- 定電圧&電流制限
- 自動フロートとバッテリーの急速充電
- サイリスタ技術を使用して出力電圧と電流を制御
- 半制御ブリッジと完全制御ブリッジは単相電源用に選択可能です。三相電源は6パルス、12パルスが選択可能
- 同時に負荷にDC電流を供給しながらバッテリーを充電
- 実行中のスイッチの作動/停止機能
- ユーザーの要求を満たすように高度にカスタマイズされています。
選択可能な構成
マイクロプロセッサ/ PLCドロップ、ダイオードおよびソフトウェアは、充電特性を制御し、遠隔監視および制御を提供するために頻繁に使用されている。
アナログ、デジタル、タッチスクリーンおよびプログラマブルディスプレイは、 電子 計測器 に 上の幅広い選択を の提供し 。
さまざまな産業上の要件を満たすために、多数の回路および外部保護(IP定格など)を組み込むこともできます。

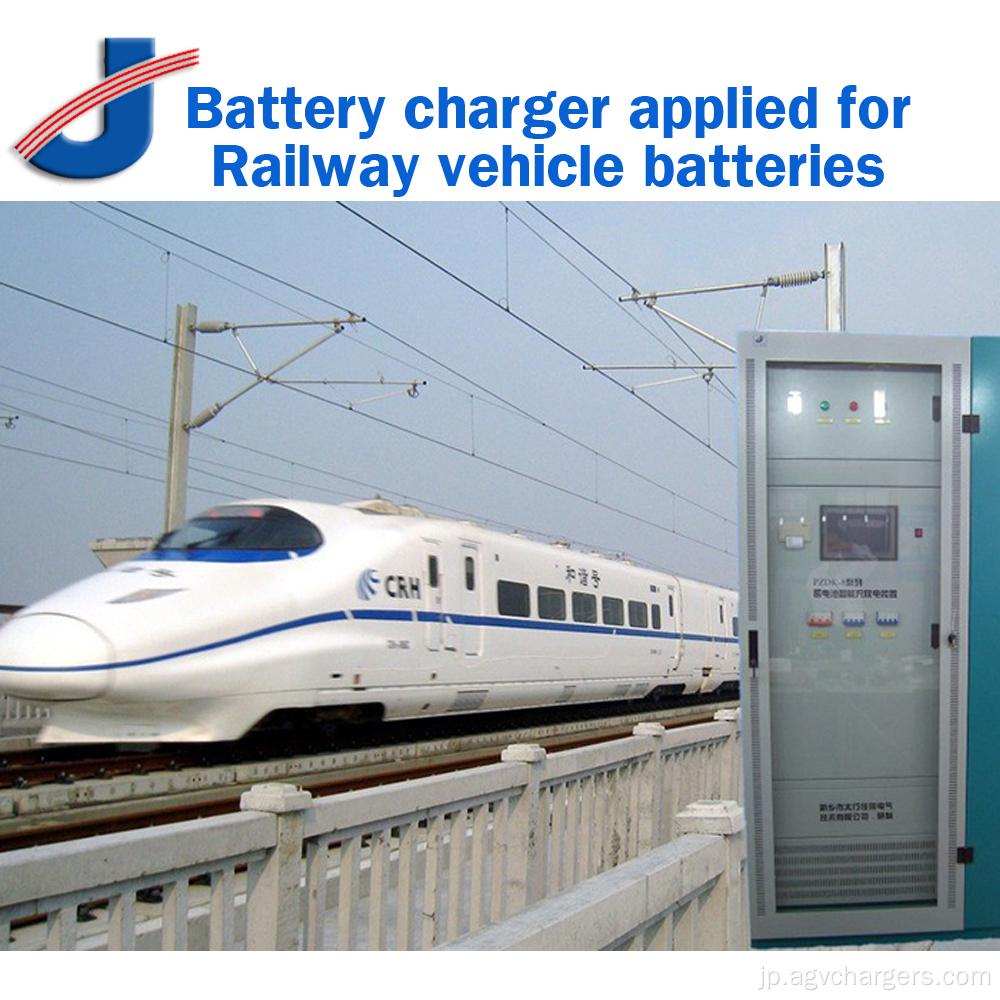

この装置は、発電所、石油化学および石油・ガス産業、鉄道や空港などのインフラストラクチャ、そして産業用計装およびプロセス制御アプリケーションで広く使用されています。
Sl. No.
|
Description
|
|
||
3
|
Rated Frequency
|
AC 400V± 20%
|
||
4
|
No of Phase
|
50 Hz -60Hz
|
||
5
|
Output voltage
|
3 Phase
|
||
6
|
Output current
|
DC 0-300 V
|
||
7
|
Charging operating control
|
DC 0-60 A
|
||
8
|
Standard
|
Boost and floating charge, automatic with manual operation
|
||
9
|
Continuous current rating
|
As per Latest Edition of applicable IEC-60146
|
||
10
|
Efficiency
|
110 % of rated current
|
||
11
|
Voltage regulation
|
80% at full load
|
||
12
|
Ripple voltage
|
± 1% for 10% input voltage variations and 5-100% load variations
|
||
13
|
Cooling system
|
Less than 3% rms (without Battery connected)
|
||
14
|
Operating temperature
|
Forced
|
||
15
|
Humidity
|
0 to 50 ℃
|
||
16
|
Audible noise
|
95%
|
||
17
|
Control characteristic
|
≤ 65dB
|
||
18
|
Switchgear
|
constant voltage current limiting
|
||
19
|
Protection
|
Input side : AC MCB
Output side : DC MCB Battery side:DC MCB |
||
20
|
Meters (Analogue) (96x96mm,1.5% ACC)
|
a. AC input surge suppressor
b. Soft Start (Short circuit protection slow starts device) c. Total Current limit d. Control circuit & Voltmeter fuses e. Rectifier Protection fuses |
||
21
|
Indications
|
a. AC Input LED
b. Charger ON Float LED c. Charger ON Boost LED d. Alarm LED |
||
22
|
Alarms
|
a. AC Input mains fail
b. Load DC under voltage c. Load DC over voltage d. Charge fail e. - earth fault f. + earth fault |
||
23
|
Dimension H*D*W(mm)
|
1800mm*650mm*800mm IP21
|
